Who am I?

Edd Lewis

BGS Open Standards Lead (& FOSS advocate)

8 years in MinEx/Mining (>5 in Australia)

5 years in Government (Data Standards & Governance/Capacity Building/Mineral Promotion/Resource Policy)

BGS

• National geological survey founded in 1835
• UK custodian of geoscientific information
• Independent
• 600 staff
• Part of UKRI, a not-for-profit public sector research establishment
• Funded by Government & external income
• Offices at Keyworth, Wallingford, Edinburgh & Cardiff

BGS

• Work with Gov, Academia & Industry
• Central Government Advice
• Services to agencies/statutory bodies - Network Rail, Environment Agency
• Services to local gov - Brownfield development, mineral planning

National Geoscience Data Centre

• All data funded by NERC
• Voluntary data deposits - Geotech drilling, Aggregates Production
• Statutory data deposits - Minerals drilling

Commercial Data Services

• Value Added Data Products
• Geosure
• Geoclimate
• Brownfield Site Development Cost Estimation

Generic Digital Workflow

SIGMA > GroundHog

Central Data Store

BGS•Σigma

Integrated tool kit for digital geological data capture

Price: Free!

BGS•Σigma

Wanted a new approach with consistant data: field, maps, 3D models, other data products

Prototyped 2001

First release 2006

Latest release 2015

BGS•Σigma

BGS•Σigma

SIGMAdesktop

SIGMAdesktop

Suite of tools to assist in map compilation and decision making

• Combining data from all geologists into one database for generating final data compilation for the project. Entry of field observation points along with linked data
• Cleaning linework
• Generating polygons
• Add more data / hide data

BGS•SIGMate

A taster

A taster

A taster

A taster

A taster

A taster

A taster

A taster

A taster

A taster

A taster

A taster

A taster

A taster

A taster

A taster

A taster

A taster

A taster

A taster

A taster

Further Info

Training/Customisation/Development

Groundhog Desktop

GroundHog

Borehole Database Integration

Direct link to BGS & OS Web Services

Collab: BGS, GTK, SGU

Latest release 2020!

Community & Professional Editions

Price: Free! (Community edition)

Boreholes

Cross Sections

Implicit 3D Modelling

Only interpolation engine geared to shallow quaternary deposits

Further Info

Training/Customisation/Development

Knowledge Extraction

Team: Rachel Heaven, Simon Burden, Bob McIntosh, Ike Nkisi-Orji, Marcus Sen, Jo Walsh

Goal

Extract stratigraphic entities and observation locations from unstructured text

Intended benefits:

Interpreted map and model products can contain links to observed data points and conceptual ideas, presenting model uncertainty and provenance

Stratigraphy of an area of interest can be quickly understood from pre-existing literature, saving experts’ time

Explicit and implicit stratigraphic relations can be captured into reusable data for modelling constraints

1. XML Semantic Markup Experiments (early 2000's)

							Physiographic zones 1 and 2 cover the bulk
							of the study area. Their character is primarily
							controlled by bedrock type and glacial history. The
							highly irregular middle zone (2) is underlain by
							Permian and Triassic
							 rocks; the Permian strata include
							Upper Permian
							Zechstein sedimentary rocks that locally
							crop out in the study area.


2. Converted to training data

							highly 0
							irregular 0
							middle 0
							zone 0
							is 0
							underlain 0
							by 0
							Permian CHRONOSTRAT
							Triassic 0
							rocks 0
							the 0
							Permian CHRONOSTRAT
							strata 0
							include
							Upper Permian CHRONOSTRAT
							Zechstein LEXICON
							sedimentary 0


3. Train a custom Named Entity Recognition (NER) model for strategraphic terms

							java -cp
							edu.stanford.nlp.ie.crf.CRFClassifier -
							prop

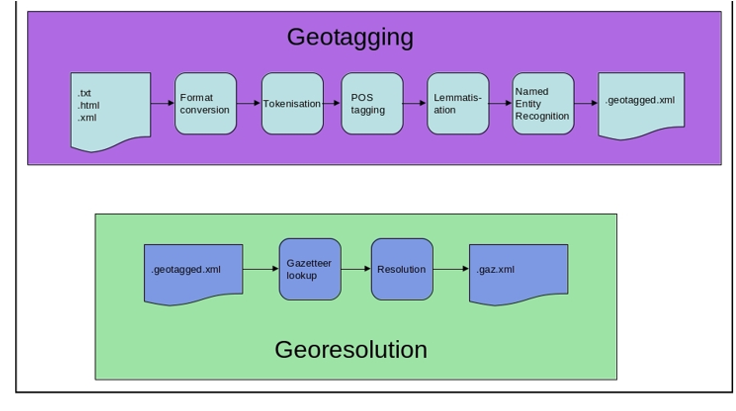

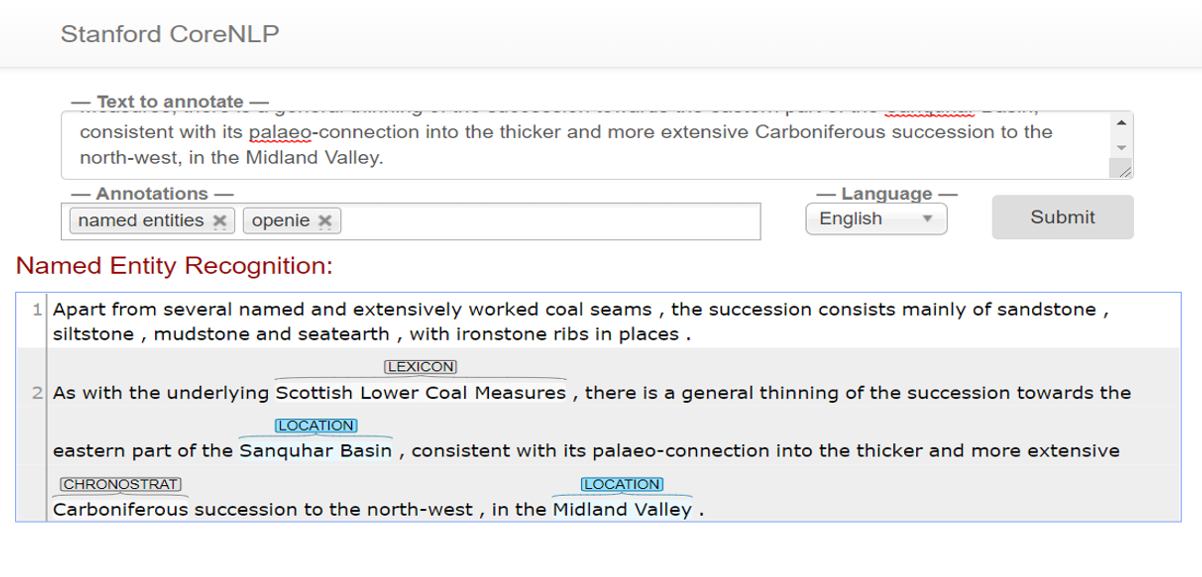

4. Run text mining using custom NER model for stratigraphy and core NER locations

5. Stratigraphy entities matched to BGS Linked Data Vocabs

6. Locations resolved to geometry using gazetteer

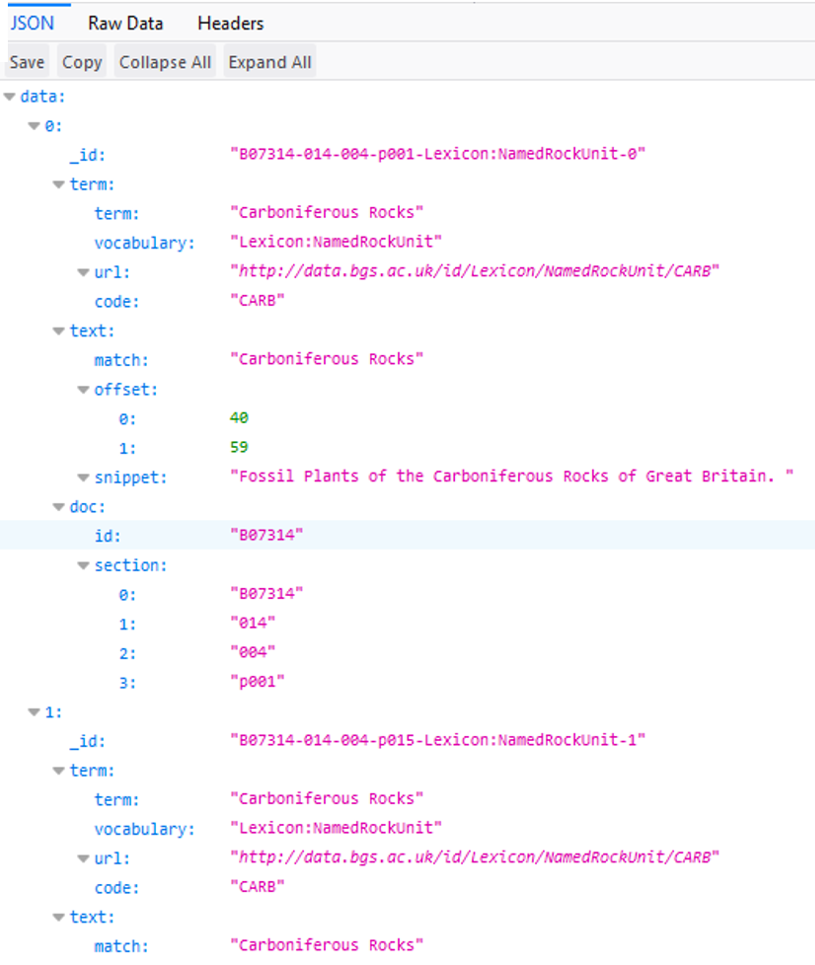

7. Database of mined data with API

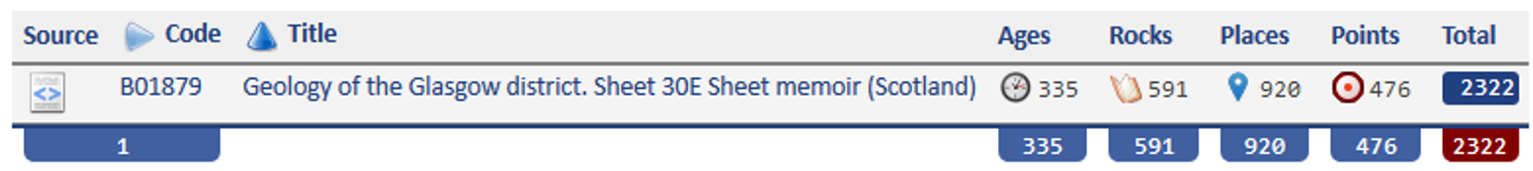

9. API supports frequency and corrolation analysis

Loop Project

Involved in WP1 & WP2 knowledge extraction work

UKGEOS

A a network of observatories is being established to deliver essential new data from deep underground.

Standards

Value of geospatial is becoming more significant as the public and private sectors further embrace location

Standards play an important role in facilitating interoperability of location information and applications for improved situational awareness, business intelligence and decision making.

Standards Timeline

GIS Data

Recently included GeoPackage in data download options.

Starting to also receive GeoPackage with data requests

GIS Data

Test deployment of pygeoapi - OGCAPI-Features

More datasets coming soon - WFS > OGCAPI-Features

Sensor Data

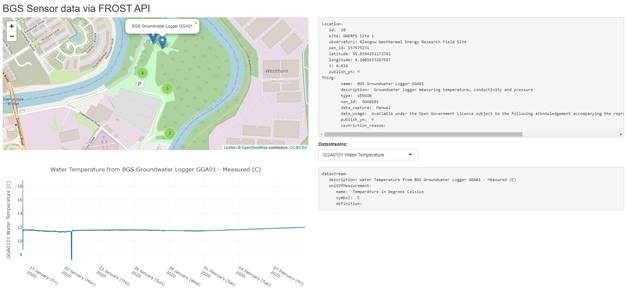

Test deployment of FROST Server - OGC SensorThingsAPI for UKGEOS data

Again more datasets coming soon

AGS Borehole Data

Working with AGS data format committee on a AGS data validator - API & GUI

Will build generic framework based on FastAPI so can be reskinned for multiple deployents. Support for alternative versions like AGS-Australia on roadmap

Tools

Major issue of symbology tied to ESRI infrastructure

SLYR to the rescue!

BGS Data

Errors due to CRS (OSGB36) but styling is correct

Reports/Publications

Moving to Digital First - HTML

PDF publications have left us with significant legacy issues.

HTML UK Gov publishing standard

Wrap Up

BGS always interested in collaboration

In both Research & Technology

Questions?
